Bryston Mini A Speaker System Review Test Bench

Test Bench

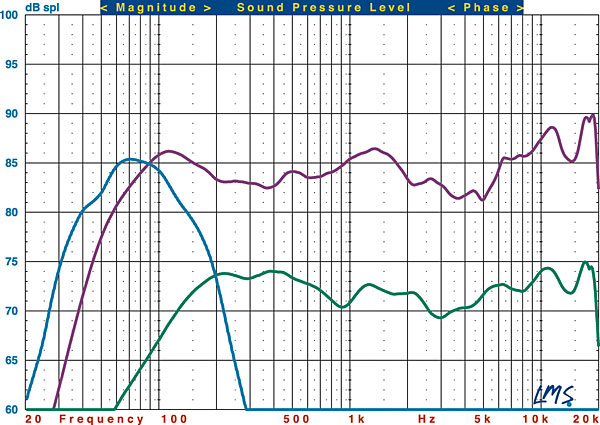

Mini A (purple) +2.41/–3.68 dB, 200 Hz to 10 kHz; –3 dB @ 66 Hz, –6 dB @ 54 Hz; impedance minimum 6.24 ohms @ 4.0 kHz, phase angle –42.67º @ 114 Hz; sensitivity 85 dB, 500 Hz to 2 kHz.

AC-1 Micro (green) +2.04/–2.67 dB, 200 Hz to 10 kHz; –3 dB @ 115 Hz, –6 dB @ 92 Hz; impedance minimum 7.51 ohms @ 263 Hz, phase angle –44.50º @ 139 Hz; sensitivity 86.5 dB, 500 Hz to 2 kHz.

Model A SUB (blue) Close-miked response, normalized to level @ 80 Hz: lower –3 dB @ 45 Hz, –6 dB @ 35 Hz, upper –3 dB @ 118 Hz with crossover switch set to 150 Hz.—MJP
