Features:
Processing Modes: Dolby: Digital 5.1, EX, Pro Logic II, Virtual Speaker, Headphone, DTS: DTS, ES, 96/24, Neo:6, Other: HDCD, Logic 7, VMAx, MP3
THX Certification: No
Audio D/A Converter: Cirrus CS 42528
Number of Amp Channels: 7
Amp Power (per channel): 75 watts, into 8 ohms, all ch. driven
Amp Frequency Response: 10 Hz—130 kHz
Dimensions (H x W x D): 6.5 x 17.3 x 17.1
Weight (in pounds): 41
These listings are based on the manufacturer's stated specs; the HT Labs box below indicates the gear's performance on our test bench.

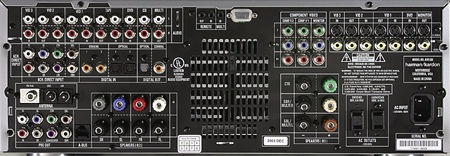

Connections:
Inputs:
Video: component (2),
S-video (5), composite (5)
Audio: coaxial digital (3), optical digital (3), eight-channel analog (1), stereo analog (7)
Outputs:
Video: component (1),
S-video (3), composite (3)
Audio: coaxial digital (1), optical digital (1), stereo analog (4), preamp (1), main room (2), second zone (2)
Additional:
A-BUS (1), RS-232 (1), infrared jack (2), switchable front-panel jacks may serve as inputs or outputs

AVR 630, $1,299
Harman/Kardon
(516) 496-3400
www.harmankardon.com
Dealer Locator Code HAR
