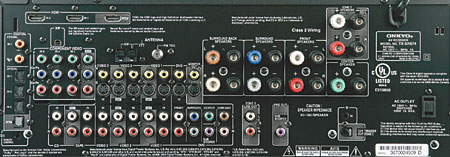

Connections
Inputs:
Video: HDMI 1.1 (2), component video (3), S-video (4), composite video (5)
Audio: Coaxial digital (2), optical digital (4), 7.1-channel analog (1), stereo analog (6), multizone stereo analog (1)
Outputs:
Video: HDMI 1.1 (1), component video (1), S-video (3), composite video (3)
Audio: Optical digital (1), stereo analog (3), subwoofer (1)
Speaker: Second-zone stereo in addition to primary-zone surround
Additional: RS-232 (1), 12-volt trigger (3), IR jack (2)
These listings are based on the manufacturer's stated specs; the HT Labs box below indicates the gear's performance on our test bench.

Features
Processing Modes: Dolby: Digital 5.1, EX, Pro Logic IIx
DTS: DTS, ES, 96/24, Neo:6
Other: Neural Surround (XM),
mono movie, orchestra, unplugged, studio-mix, TV logic, all-channel stereo, full mono, T-D
THX Certification: No
Audio D/A Converter: 24-bit/192-kilohertz
Number of Amp Channels: 7
Power Rating (watts per channel):95, into 8 ohms; 115, into 6 ohms;
both ratings with 2 channels driven
Frequency Response: +/– 1 dB from 20 Hz to 20 kHz;
+1/–3 dB from 10 Hz to 100 kHz
Finishes: Black, Silver
Dimensions (H x W x D, inches): 6.8 x 17.1 x 14.8
Weight (pounds): 25.1
Price: $799

Ratings: Onkyo TX-SR674 A/V Receiver

Build Quality: 85
• Blue LED surrounds volume knob
• Collared binding posts
• The usual; nothing special

Value: 93
• Has valuable video features
• Auto setup is a plus
• iPod dock optional

Features: 93
• Dual HDMI inputs with upconversion, deinterlacing, and 1080p bandwidth
• Audyssey auto setup measures room from three points
• Rated at 95 watts times seven

Performance: 94
• Behaves well at high volume levels
• Smooth, natural midrange
• Decent bass

Ergonomics: 92
• Remote well organized but could use backlighting
• A front-panel button for every source
• Cable labels are a nice extra

Overall Rating: 92
Onkyo packs a shrewd features set, lots of value, and a musically adept midrange into this midpriced receiver. It won't win any beauty contests, but it will get along great with your 1080p HDMI-capable display. If you were thinking of getting a budget receiver, you should consider stepping up to this.

General Information
TX-SR674 A/V Receiver, $799
Onkyo USA
(800) 229-1687
www.onkyousa.com
Dealer Locator Code ONK
