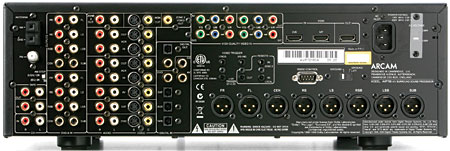

Connections
Inputs:
Video: HDMI (2), component video (3), S-video (5), composite video (5)
Audio: coaxial digital (3), optical digital (3), 7.1-channel analog (1), stereo analog (7)
Outputs:
Video: HDMI (1), component video (1) S-video (3), composite video (4)
Audio: balanced XLR (8), single-ended analog (8), coaxial digital (1), optical digital (1), stereo analog (4),
Additional:
RS-232 (1), 12-volt trigger (3), IR receiver (2), IR emitter (1)

Features
Processing Modes: Dolby: Digital 5.1, EX, Pro Logic IIx
DTS: DTS, ES Discrete, Neo:6
Other: DSP modes
THX Certification: No
Audio D/A Converter: 24-bit/96-kilohertz
Frequency Response: –0.25 dB from 20 Hz to 20 kHz
Dimensions (H x W x D, inches): 16.5 x 16.9 x 5.7
Weight (pounds): 18.2
Price $2,199

These listings are based on the manufacturer's stated specs; the HT Labs box below indicates the gear's performance on our test bench.

At A Glance: Arcam P1000 Amplifier

Features
Number of Channels: 7
Power Rating (watts per channel): 135, all channels driven into 8 ohms
Frequency Response: +/– 0.2 from 2 Hz to 50 kHz
Dimensions (H x W x D, inches): 5.2 x 16.9 x 15.7
Weight (pounds): 40
Price: $2,299

Connections
Inputs: Balanced XLR (7), RCA (7),
Outputs:
RCA (7), Five-way binding posts (7)
Additional:
12-volt input

These listings are based on the manufacturer's stated specs; the HT Labs box below indicates the gear's performance on our test bench.

Ratings: Arcam AVP700 Pre/pro and P1000 Amplifier

Build Quality: 93
• Quality internals on both AVP700 and P1000
• Rugged build

Value: 92
• Nice combination of performance and features for the price
• Built for the long haul

Features: 93
• HDMI inputs and outputs
• True dual-differential balanced connections

Performance: 93
• AVP700 is clean and quiet
• P1000 is too, but will get rowdy anytime you ask it to

Ergonomics: 94
• Familiar, quality remote and a well-executed onscreen interface
• Simple and straightforward

Overall Rating: 93
Arcam continues a good run of quality midpriced separates with the AVP700 and P1000. The HDMI inputs and truly balanced connections are nice touches, while the performance and ease of use are the headliners.

General Information
AVP700 Pre/Pro, $2,199
P1000 Amplifier $2,299
Arcam/Audiophile Systems
(888) 272-2658
www.audiophilesystems.com
Dealer Locator Code ARC
