AV Receiver Reviews

All five channels driven continuously into 8-ohm loads:
0.1 percent distortion at 34.1 watts
1 percent distortion at 36.7 watts

Analog frequency response in Direct mode:
–0.20 dB at 10 Hz; –0.06 dB at 20 Hz
+0.06 dB at 20 kHz; –2.29 dB at 50 kHz

Analog frequency response with stereo signal processing:
–2.05 dB at 10 Hz; –0.65 dB at 20 Hz
–0.01 dB at 20 kHz; –54.97 dB at 50 kHz

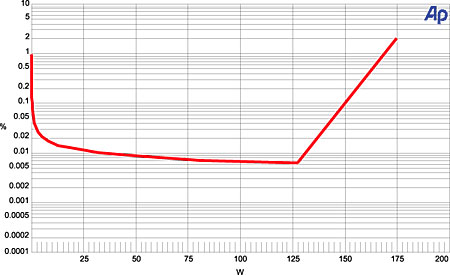

This graph shows that the VSX-918V’s left channel, from CD input to speaker output with two channels driving 8-ohm loads, reaches 0.1 percent distortion at 149.7 watts and 1 percent distortion at 168.6 watts. Into 4 ohms, the amplifier reaches 0.1 percent distortion at 188.1 watts and 1 percent distortion at 236.0 watts.

Response from the multichannel input to the speaker output measures –0.19 decibels at 10 hertz, –0.06 dB at 20 Hz, +0.04 dB at 20 kilohertz, and –2.37 dB at 50 kHz. THD+N from the CD input to the speaker output was less than 0.041 percent at 1 kHz when driving 2.83 volts into an 8-ohm load. Crosstalk at 1 kHz driving 2.83 volts into an 8-ohm load was –82.71 dB left to right and –82.54 dB right to left. The signal-to-noise ratio with 2.83 volts driving an 8-ohm load from 10 Hz to 24 kHz with “A” weighting was –87.89 dBrA.

From the Dolby Digital input to the loudspeaker output, the left channel measures –0.10 dB at 20 Hz and +0.02 dB at 20 kHz. The center channel measures –0.10 dB at 20 Hz and –0.06 dB at 20 kHz, and the left surround channel measures –0.10 dB at 20 Hz and –0.06 dB at 20 kHz. From the Dolby Digital input to the line-level output, the LFE channel is –0.15 dB at 20 Hz when referenced to the level at 40 Hz and reaches the upper 3-dB down point at 118 Hz and the upper 6-dB down point at 120 Hz.—MJP
