AV Receiver Reviews

Five channels driven continuously into 8-ohm loads:
0.1 percent distortion at 46.8 watts
1 percent distortion at 56.9 watts

All channels driven continuously into 8-ohm loads:
0.1 percent distortion at 46.5 watts
1 percent distortion at 54.2 watts

Analog frequency response in Analog Direct mode:
–0.08 dB at 10 Hz; –0.02 dB at 20 Hz
–0.06 dB at 20 kHz; –0.40 dB at 50 kHz

Analog frequency response with signalprocessing:
–0.65 dB at 10 Hz; –0.19 dB at 20 Hz
–0.52 dB at 20 kHz; –34.84 dB at 50 kHz

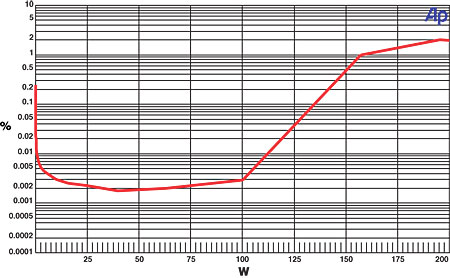

This graph shows that the STR-DA3300ES's left channel, from CD input to speaker output with two channels driving 8-ohm loads, reaches 0.1 percent distortion at 134.6 watts and 1 percent distortion at 157.5 watts. Into 4 ohms, the amplifier reaches 0.1 percent distortion at 189.3 watts and 1 percent distortion at 232.3 watts.

Response from the multichannel input to the speaker output measures –0.08 dB at 10 Hz, –0.02 dB at 20 Hz, –0.05 dB at 20 kHz, and –0.39 dB at 50 kHz. THD+N from the CD input to the speaker output was less than 0.023 percent at 1 kHz when driving 2.83 volts into an 8-ohm load. Crosstalk at 1 kHz driving 2.83 volts into an 8-ohm load was –77.07 dB left to right and –78.60 dB right to left. The signal-to-noise ratio with 2.83 volts driving an 8-ohm load from 10 Hz to 24 kHz with "A" weighting was –97.74 dBrA.

From the Dolby Digital input to the loudspeaker output, the left channel measures –0.08 dB at 20 Hz and –0.41 dB at 20 kHz. The center channel measures –0.08 dB at 20 Hz and –0.49 dB at 20 kHz, and the left surround channel measures –0.08 dB at 20 Hz and –0.41 dB at 20 kHz. From the Dolby Digital input to the line-level output, the LFE channel is –0.12 dB at 20 Hz when referenced to the level at 40 Hz and reaches the upper 3-dB down point at 105 Hz and the upper 6-dB down point at 112 Hz.—MJP
